Omar Mohammed

Omar Mohammed

Hardware design focused EE student. FPGA accelerators, embedded firmware, PCB design.

scroll

Projects

FPGA Neural Network Accelerator

In progress

I'm mapping CNN and Mamba RNN models onto AMD Versal FPGAs to run power-efficient inference. The work covers two fronts: RF signal detection and building energy modeling.

Vitis AIVitis HLSVivadoC++/HLSVerilog

Drag to rotate

Flood Detection Sensor PCB

A battery-powered flood monitor for urban areas. It does thermal imaging, environmental sensing, and pushes data over LoRa.

KiCadPCBLoRaWAN
GitHub

SOQ v1

A Kinect-audio tracking system that estimates sound direction from the mic array.

C++PythonDSP
GitHub

Skills

FPGA / RTL
Vivado Vitis AI Vitis HLS VHDL SystemVerilog
Languages
Python C C++
PCB
KiCad

CHaRTS Research Lab · Syracuse University · Summer 2025

Drag to rotate · Scroll to zoom

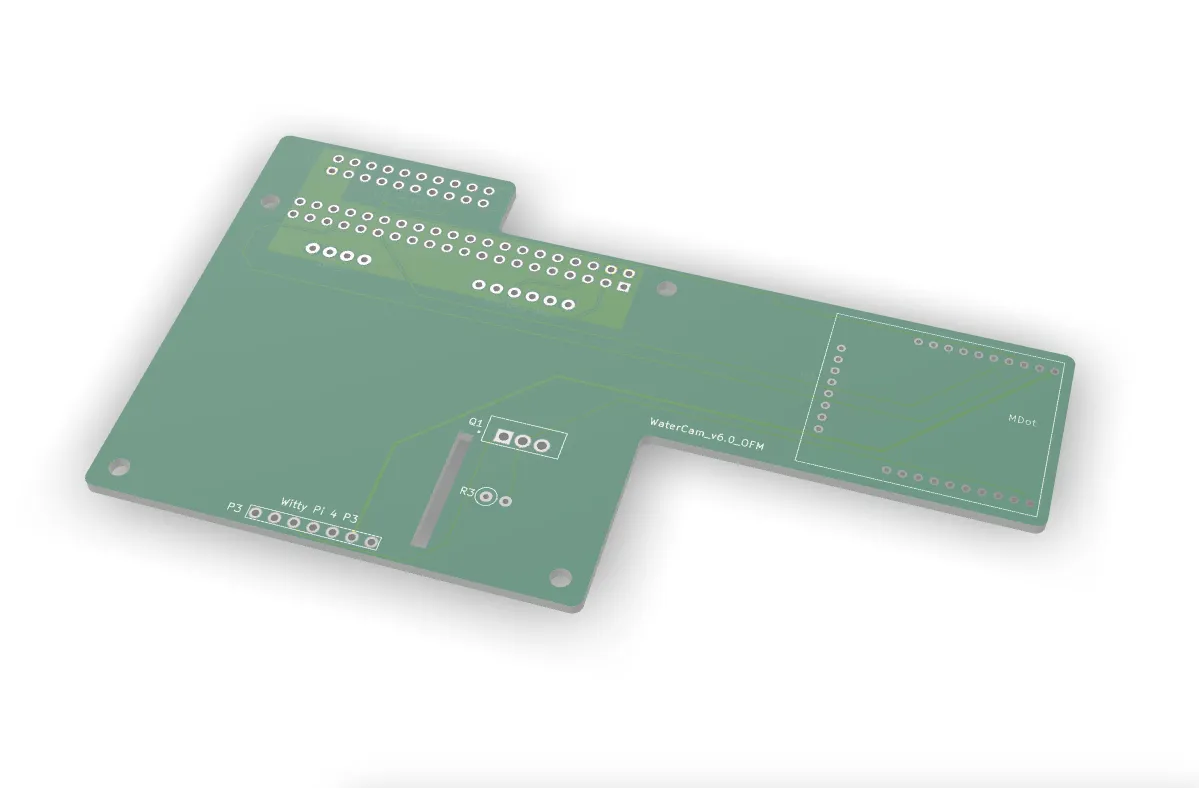

Custom 2-layer PCB for a battery-powered flood monitoring system. Integrates a FLIR Lepton thermal camera, BNO055 IMU, mDot LoRaWAN radio, and Witty Pi 4 power management for remote urban deployment.

First PCB I designed. Taught myself KiCad and went from schematic to fabrication-ready Gerbers in a few weeks. Mentored by Dr. Elizabeth Carter and Manu Shergill.

Board 2-layer, 0.25mm signal / 0.5mm power traces
Power 3.3V + 5V rails, Witty Pi 4 power management
Comms LoRaWAN (mDot module), I²C, UART
Sensors FLIR Lepton thermal camera, BNO055 IMU
View on GitHub esc to close

Personal project · 2025

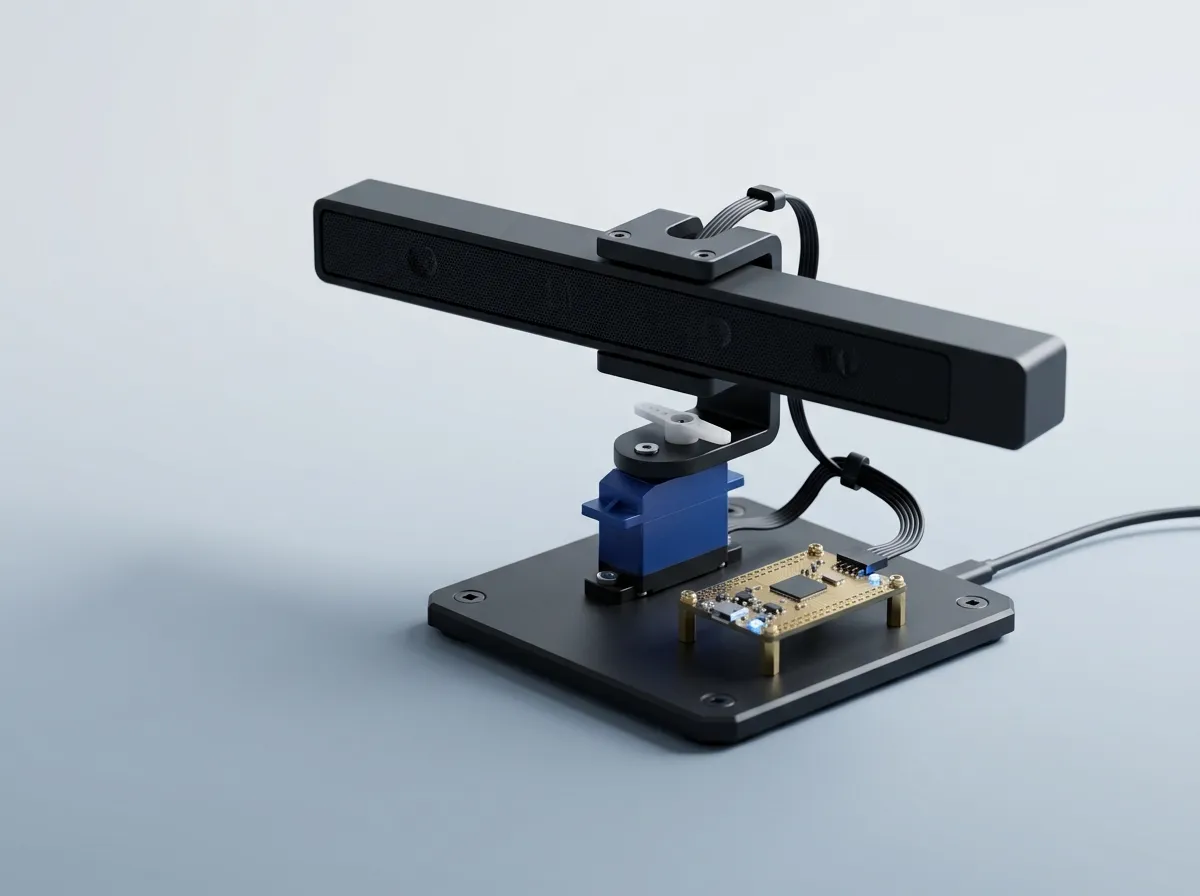

Live dashboard that tracks the direction of an audio source in real time using the four-microphone array on the Kinect 360. Beamforming and time-of-arrival across the array feed an angle estimate, surfaced as a live indicator on screen.

Input Kinect 360 4-mic array
Signal TDOA + steered-response beam-forming
Stack C++ DSP core, Python visualization
View on GitHub esc to close
